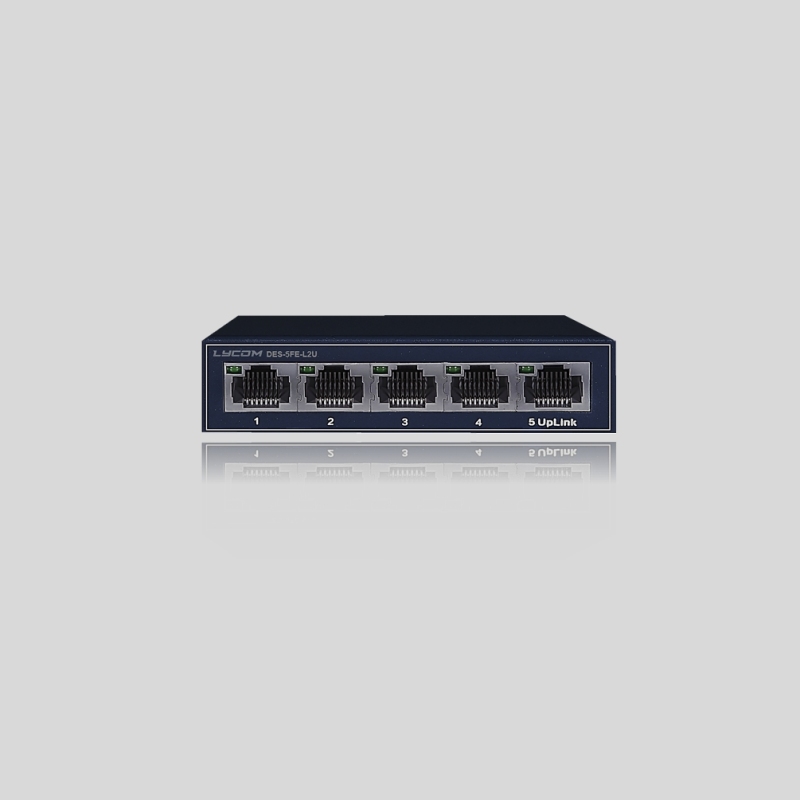

Lycom Switches DES -5FE -L2U（5FE-Unmanaged）

Items

DES-5FE-L2U

Connector Type

5*10/100M

Network Protocols

IEEE802.3i;IEEE802.3u;IEEE802.3x;
IEEE802.3ab;IEEE802.3az

Network Media

10BASE-T: Cat 3,4,5 UTP(≤100 meter)

100BASE-T: Cat 5 UTP(≤100 meter)

1000BASE-TX: Cat5 or more UTP (≤100 meter)

Performance Specification

Bandwidth: 1Gbps

MAC Address: 2K

Packet Forwarding Rate: 0.74Mpps

Forwarding Mode: Store-And-Forward

Power Supply

DC 5V-1A

Working Environment

Operating Temperature: -20℃ ~ 50℃;

Storage Temperature: -40℃ ~ 85℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Working Height: Max to 10,000 feet (3,000 meters)

Storage Height: Max to 10,000 feet (3,000 meters)

Physical Parameter

Product Dimensions: 96*63*26mm

N.W: 0.2KG

MTBF

100,000 hours
