16GE(POE)+2GE SFP Ports
Exchange mechanism using store-and-forward
IEEE802.3af or IEEE802.3at standard
QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2;
Support multiple VLAN division, MAC VLAN, Protocol VLAN
Description Review
Product Overview

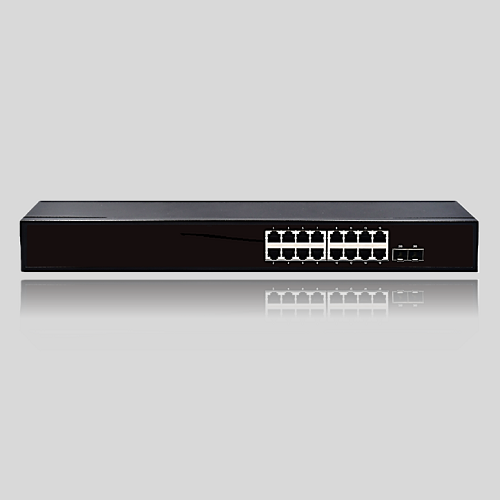

DES-16GP2F-L2 Managed GE Intelligent POE Ethernet Switch, black iron shell design, built-in DC 12V Power supply, light and simple, with LED indicator on the panel, can dynamically display the connection and operation of equipment, provide simple fault detection methods, and facilitate maintenance and management; this series of switches provide advanced network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and firmware online upgrade.
The adaptive port can automatically adapt to the 10/100/1000M(POE) networks, and can automatically adapt to the full duplex or half duplex mode; It adopts High-Quality and High-Speed Network IC and the most stable POE Chip. The POE port meets the IEEE802.3af or IEEE802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The Non-POE devices are forcibly powered and only transmit data.
It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, community broadband, etc.; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, schools, etc.
Comply with IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z standards
All ports support wire-speed switching
Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2;
Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
Product Hardware
Items DES-16GP2F-L2
Connector Type 16*10/100/1000M(PoE) + 2*GE SFP ,1*console
Network Protocols IEEE802.3;IEEE802.3u;
PoE Parameters PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af );
Max each port30W ( IEEE 802.3at )
Network Media 10BASE-T: Cat 3,4,5 UTP(100 meter)
100BASE-T: Cat 5 UTP(100 meter)
1000BASE-TX: Cat5 or more UTP (100 meter)
Performance Specification Bandwidth: 40Gbps
MAC Address: 8K
Packet Buffer Memory: 4M
Packet Forwarding Rate: 14.88Mpps
Forwarding Mode: Store-And-Forward
Power Supply Power input: AC100-240V 50/60Hz,
Output: 52V2.3A,
Power Budget: 140W
Working Environment Operating Temperature: -20 ~ 50;
Storage Temperature: -40 ~ 85
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 95%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
Physical Parameter Product Dimensions: 440*205*44mm
Package Dimensions: 500*275*85mm
N.W: 2.7KG
G.W: 3.2KG
MTBF 100,000 hours
Product Features
Port Management Enable/Disable Port
SpeedDuplexMTU Setting
Port Information Check
Port Mirroring Supports both side-way port mirroring
Port Speed Limit Supports port-based input / output bandwidth management
Port Isolation Support the downlink port isolation, and can communicate with the uplink port
Storm Suppression Supports unknown unicast, multicast, unknown multicast,
broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering
Link Aggregation Support static manual aggregation
Support LACP dynamic aggregation
VLAN Access\ Trunk\ Hybrid
Support port, protocol, MAC-based VLAN partitioning
Support GVRP dynamic VLAN registration
MAC Support static addition, deletion
MAC address learning limit
Support dynamic aging time setting
Spanning tree Support STP spanning tree protocol
Supports RSTP Rapid Spanning Tree Protocol
Supports MSTP Rapid Spanning Tree Protocol
Multicast Support static addition, deletion
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
Qos Based on 802.1p (COS) classification
Based on DSCP classification
Classification based on source IP, destination IP, and port number
Support SP, WRR scheduling strategy
Support flow rate limit CAR
LLDP Support LLDP link discovery protocol
User settings Add/delete users
Log User login, operation, status, events
DOS defense
Support CPU protection and limits the rate of sending cpu packets
ARP binding (IP, MAC, PORT binding)
System Management Device reset, configuration save/restore, upgrade management, time setting, etc.
WEB Support Layer 2 settings, Layer 2 and Layer 3 monitor
RMON Support RMON v1
Other functions Support DHCP SnoopingOption82
Support dynamic ARP detection
Support TACACS+ certification
Support DNS certification
Support port security settings
Support MVR protocol
Support cable detection VCT function
Support UDLD protocol
Purchase Information
Model Product Description
DES-16GP2F-L2 16*10/100/1000M(POE) +2*GE SFP ,1*console
